Your Complete Package All in One Place!

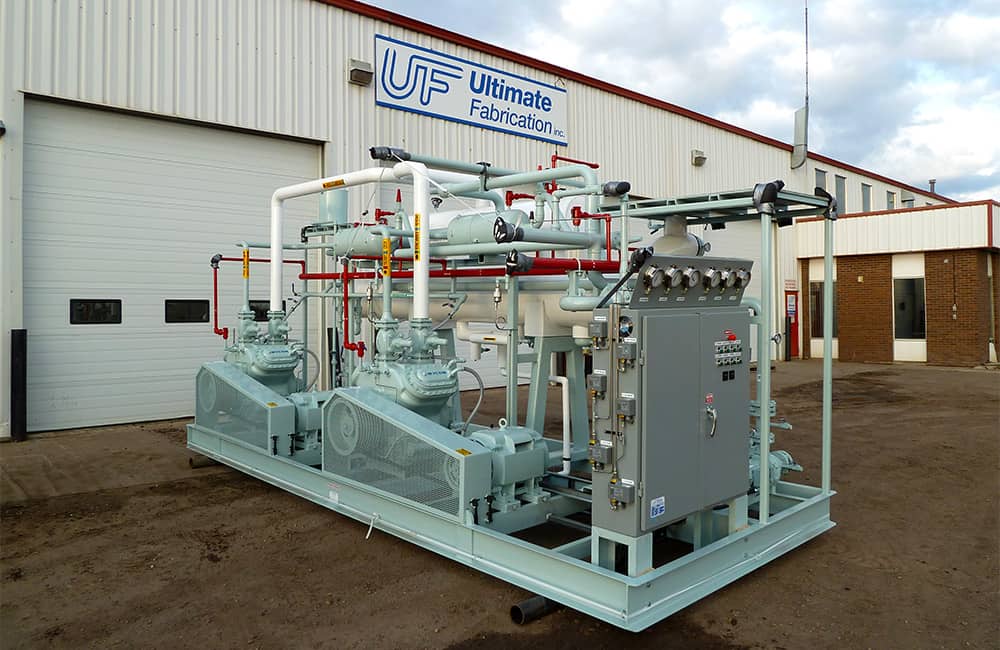

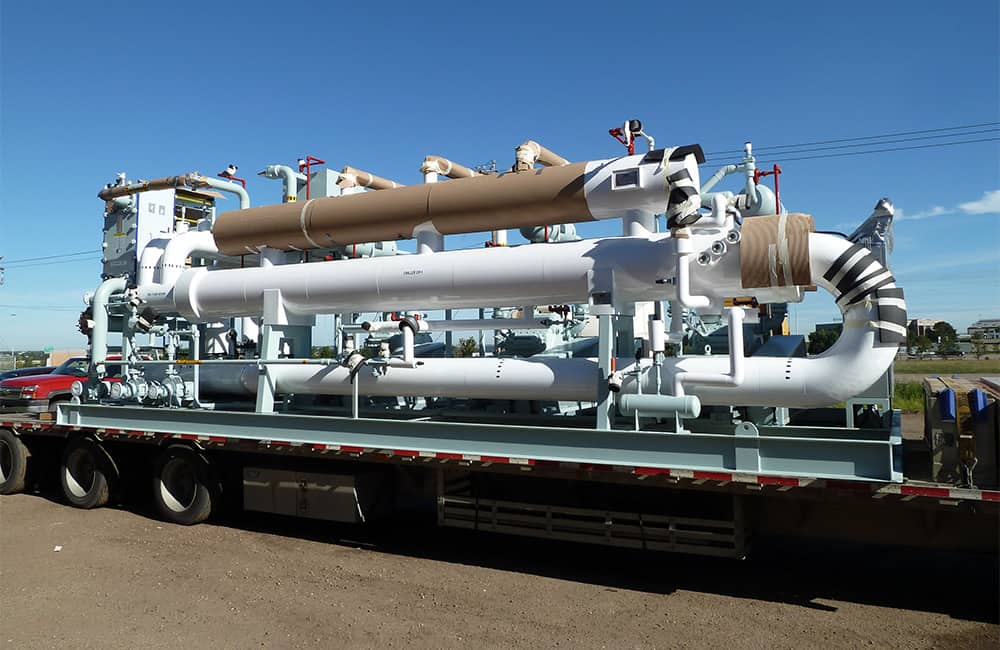

The EZ ICE AFD standard artificial ice skid packages are designed to accommodate your needs. They are a very efficient, reliable package designed as ammonia / brine, or glycol flooded system, utilizing Ultimate Fabrication’s standard design.
Our care and attention to detail in every skid design maximizes performance while protecting the equipment and allowing easy access, which will save you money in maintenance and service in years to come.
- A service-friendly skid package designed to allow for:
- EZ access to all maintainable components.
- EZ installation.
- EZ operation.
- EZ maintenance.
- Standard package includes Motor Control Centre (MCC) panel, complete with softstarters on compressor motors, across the line starters for all other motors, overloads, relays, timers, and hand-off-auto switches.
- Skid packages are fully wired.
- MCC panel allows for condenser fan motor and condenser water pump motor.
- Optional items available upon request:
- Heat floor system.
- Snowmelt pit system.
- Domestic water preheat system.
- 100% back-up pump completely piped in ready for automatic switch over.
- Softstarter on the brine pump motors.
- Digital Direct Controller (DDC) system.
- The AFD packages are available in different capacities.
22’ – 0” (6096 mm) Long
10’ – 0” (3048 mm) High
*Dimensions may vary based on final design.
**Shipping weight may vary based on final design.
***Does not include the condenser charge.
*Full Amperage of skid package is only for motors listed in performance specifications data. Final amperage of skid package is confirmed at time order is placed and optional items secured.
**Total HP of skid package includes only motors listed in performance specifications data and does not include optional items. Final HP of skid package will be determined at time of order.
95° F SCT
- Features
-
- A service-friendly skid package designed to allow for:
- EZ access to all maintainable components.
- EZ installation.
- EZ operation.
- EZ maintenance.
- Standard package includes Motor Control Centre (MCC) panel, complete with softstarters on compressor motors, across the line starters for all other motors, overloads, relays, timers, and hand-off-auto switches.
- Skid packages are fully wired.
- MCC panel allows for condenser fan motor and condenser water pump motor.
- Optional items available upon request:
- Heat floor system.
- Snowmelt pit system.
- Domestic water preheat system.
- 100% back-up pump completely piped in ready for automatic switch over.
- Softstarter on the brine pump motors.
- Digital Direct Controller (DDC) system.
- The AFD packages are available in different capacities.
- A service-friendly skid package designed to allow for:
- Skid Specs
-
SKID DIMENSIONS*8’ – 5” (3759 mm) Wide
22’ – 0” (6096 mm) Long
10’ – 0” (3048 mm) HighSHIPPING WEIGHT**18,400 lbs (8,346 kg)OPERATING WEIGHT22,000 lbs (9,979 kg)NH3 CHARGE***Approx. 300 – 350 lbs*Dimensions may vary based on final design.
**Shipping weight may vary based on final design.
***Does not include the condenser charge. - Electrical Specs
-
SUPPLY VOLTAGE575V / 3Ph / 60Hz460V / 3Ph / 60HzFULL LOAD AMPS (FLA)*166 Amps207 AmpsTOTAL MOTOR HP OF SKID**179 HP179 HPCOMPRESSOR MOTOR75 HP75 HPCOOL PUMP MOTOR25 HP25 HPHEAT PUMP MOTOR3 HP3 HPJACKET COOL PUMP MOTOR1 HP1 HPCOND WATER PUMPTBDTBDCOND FAN MOTORTBDTBD
*Full Amperage of skid package is only for motors listed in performance specifications data. Final amperage of skid package is confirmed at time order is placed and optional items secured.
**Total HP of skid package includes only motors listed in performance specifications data and does not include optional items. Final HP of skid package will be determined at time of order. - Performance Specs
-
SYSTEM TONNAGE100 TRDESIGN CONDITION10° F SST
